PUMP TANKS

Schake Industries offers standard and custom designed pump tanks manufactured out of steel and stainless steel. Our standard offering includes 250 gallon, 500 gallon, 1000 gallon, 1500 gallon, 2000 gallon, 3500 gallon, and 5000 gallon sizes. We will custom manufacture any size pump tank to meet your flow and pressure requirements.

Our pump tanks can be configured to your particular needs utilizing triple duty valves, variable frequency drives, strainer baskets, and pump discharge manifolds if required for your application. The reservoir is double welded and can be insulated for chilled water applications. We utilize a variety of high quality pumps with ODP motors, that are mounted to the steel frame and are fully trimmed out. TEFC is an available option. Our controls can be customized to your needs, and can be free-standing or mounted to assembly frames and be pre-wired to the pump motors. The structural steel support frame makes our units extremely sturdy, and we can customize to meet your required space requirements.

Click here for steel tank specifications in PDF format. (119 KB)

click on any photo for a larger view

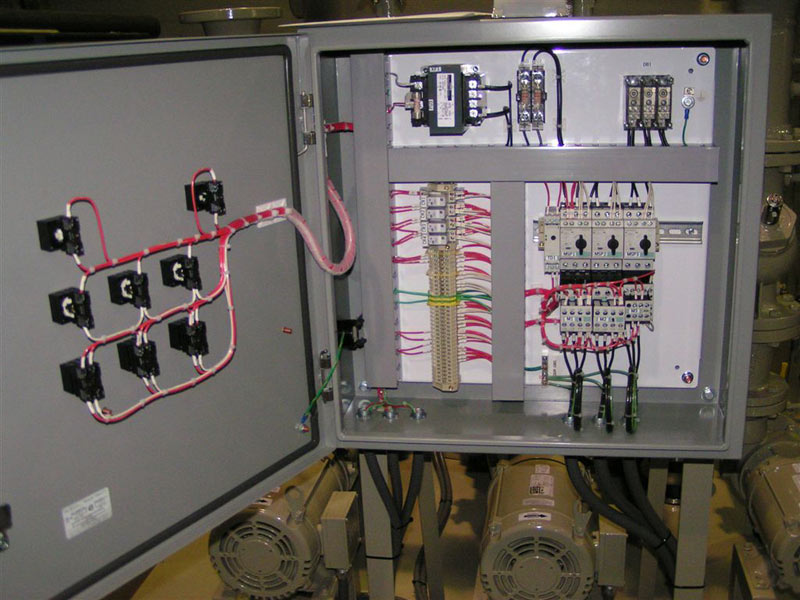

Custom Controls

Custom Controls

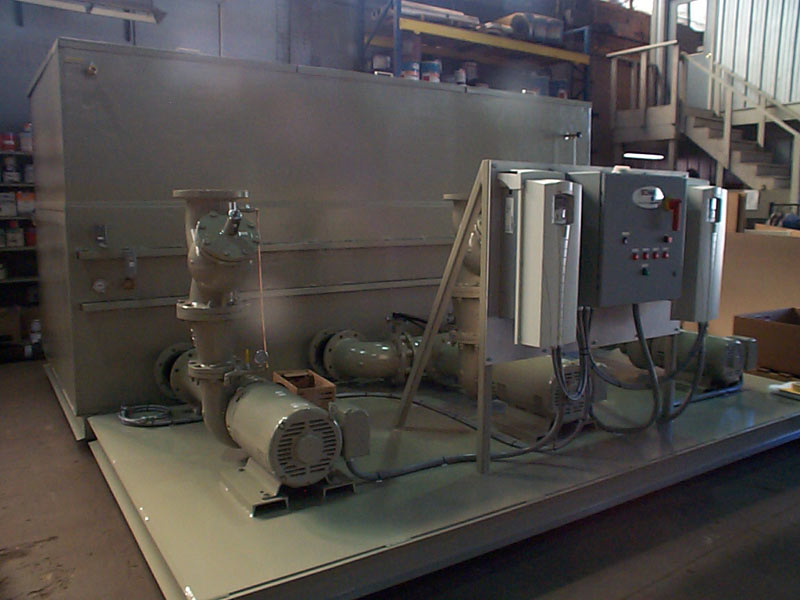

Standard Pump Tank

Standard Pump Tank

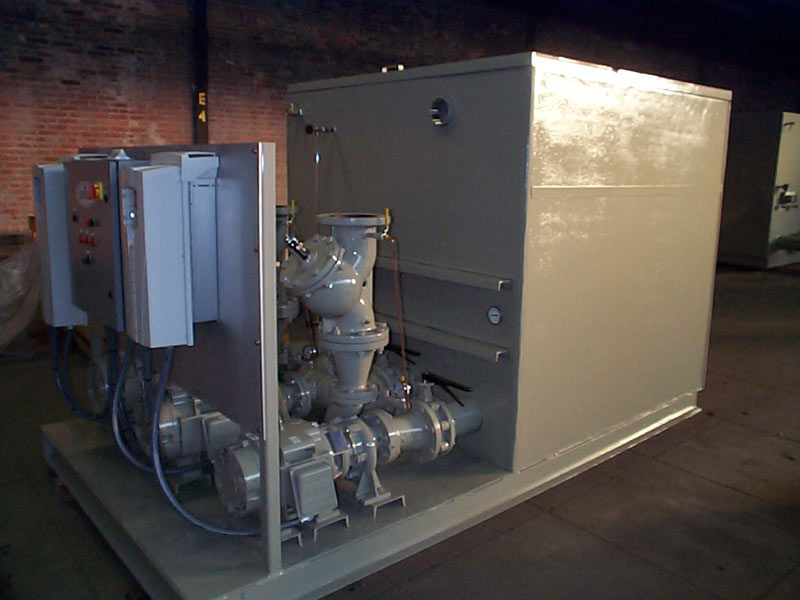

Custom Pump Tank

Custom Pump Tank

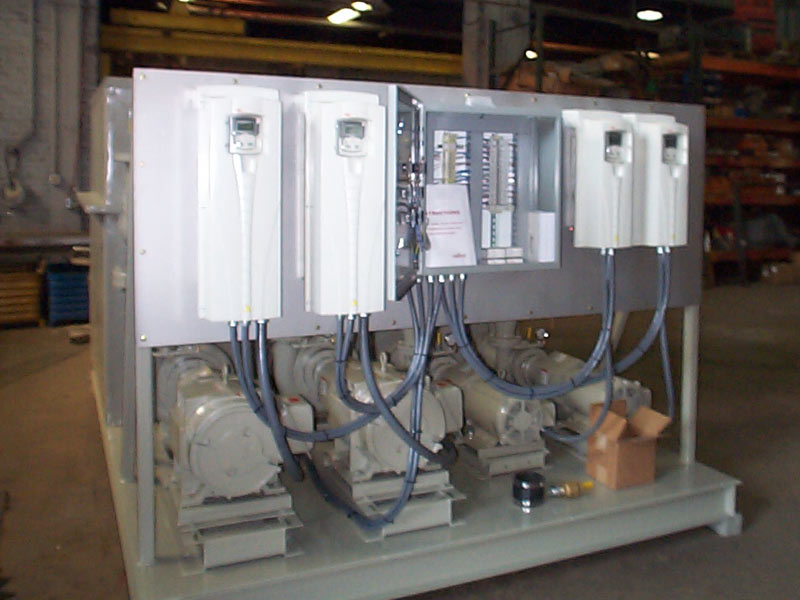

Standard Pump Tank

Standard Pump Tank
